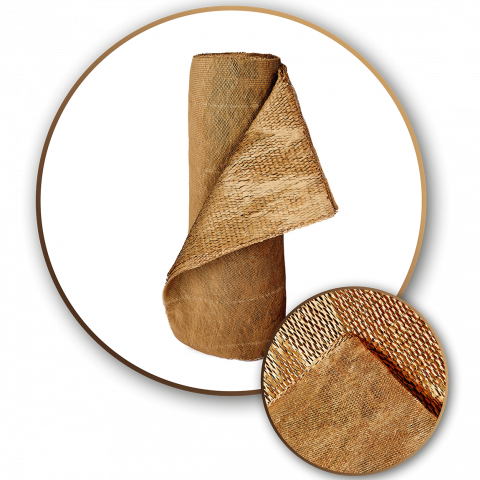

Les filtres d’extraction en papier alvéolé sont une solution efficace pour éliminer la surpulvérisation de peinture.
Composés de plusieurs couches de maillage en papier tissé, ils sont disponibles avec ou sans support en polyester.
REGULAR
| couches | Efficacité de filtration | Capacité de rétention | Dimensions | Resistance | Code |
|---|---|---|---|---|---|
|
6 |
93 à 97% |
8 à 11 kg/m2 4 à 6 lbs/plaquette 20’’x20’’ |
Rolls 42’’ x 30ft
Rolls 107cm x 9m
|
at 0.75
m/sec -150ft/min: 24Pa – 0.09’’WC |
SMS6R |
CAPACITY
| Layers |
Filtration efficiency |
Holding Capacity |
Dimensions | Resistance | COde |
|---|---|---|---|---|---|
|
8 |
93 to 97% |
10 to 13 kg/m2 2.05 to 2.66 lb/sqft |
Rolls 42’’ x 30ft
Rolls 107cm x 9m
|
at 0.75
m/sec -150ft/min: 24Pa – 0.09’’WC |
SMS8C |
ADVANCE*
| layers |
Filtration efficiency |
Holding Capacity |
Dimensions | Resistance | COde |
|---|---|---|---|---|---|
|
8 |
93 to 97% |
10 to 13 kg/m2 |
Rolls 42’’ x 30ft
Rolls 107cm x 9m
|
at 0.75 m/sec
– 150 ft/min: 24 Pa – 0.09’’WC |
SMS8C |
*only in Europe
BOOSTER*
| layers |
Filtration efficiency |
Holding Capacity |
Dimensions | Resistance | COde |
|---|---|---|---|---|---|
|
5 |
93 to 97% |
6 to 10Kg/m²
1.23 to 2.05 lb/sqft |
Rolls 42’’ x 30ft
Rolls 107cm x 9m
|
at 0.75
m/sec -150ft/min: 24Pa – 0.09’’WC |
SMS5B |
*only in Americas
DYNAMIC*
| layers |
Filtration efficiency |
Holding Capacity |
Dimensions | Resistance | COde |
|---|---|---|---|---|---|
|
7 |
93 to 98% |
9 to 12Kg/m²
1.85 to 2.5 lb/sqft |
Rolls 42’’ x 30ft
Rolls 107cm x 9m
|
at 0.75 m/sec
-150ft/min: 25Pa – 0.1’’WC |
SMS7D |
*only in Americas

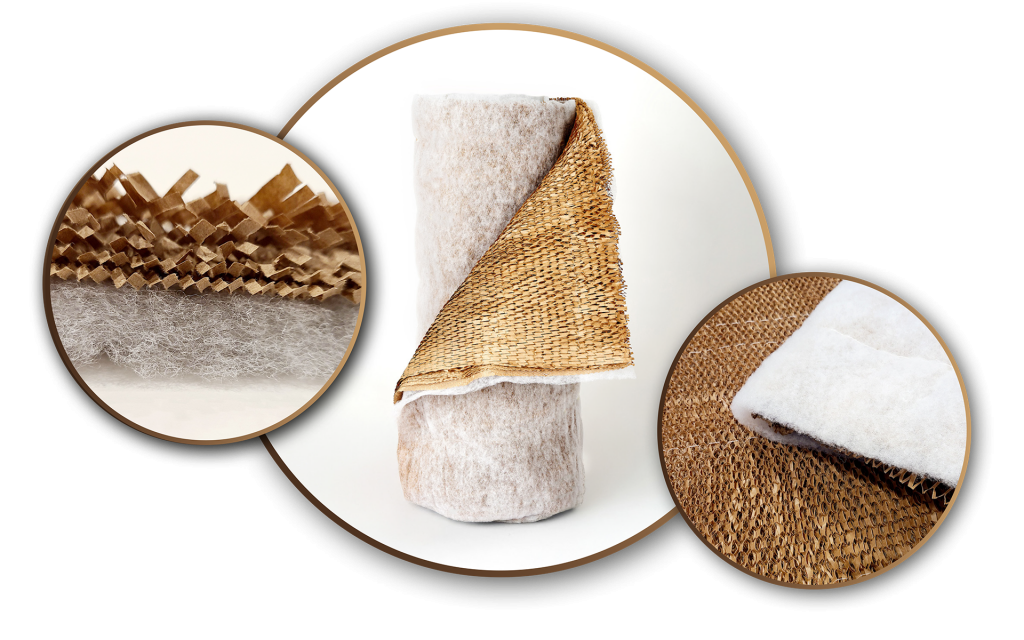

Filtre SprayMesh
REGULAR EFFICIENCY
| Layers |
Filtration efficiency |
Holding Capacity |
Dimensions | Resistance | Code |
|---|---|---|---|---|---|
|
6 + 1 polyester |
95 to 99,5% |
9 to 12Kg/m²
1.85 to 2.5 lb/sqft |
Rolls 42’’ x 30ft
Rolls 107cm x 9m
|
at 0.75 m/sec
-150ft/min: 26Pa – 0.1’’WC |
SMS6RE |
CAPACITY EFFICIENCY
| Layers |
Filtration efficiency |
Holding Capacity |
Dimensions | Resistance | COde |
|---|---|---|---|---|---|
|
8 + 1 polyester |
98 to 99,8% |
11 to 14Kg/m²
2.25 to 2.87 lb/sqft |
Rolls 42’’ x 30ft
Rolls 107cm x 9m
|
at 0.75 m/sec
-150ft/min: 26Pa – 0.1’’WC |
SMS8CE |
DYNAMIC EFFICIENCY*
| Layers |
Filtration efficiency |
Holding Capacity |
Dimensions | Resistance | Code |
|---|---|---|---|---|---|
|
7 + 1 polyester |
98 to 99,8% |
10 to 13Kg/m²
2.05 to 2.66 lb/sqft |
Rolls 42’’ x 30ft
Rolls 107cm x 9m
|
at 0.75 m/sec
-150ft/min: 26Pa – 0.1’’WC |
SMS7DE |
*only in Americas
