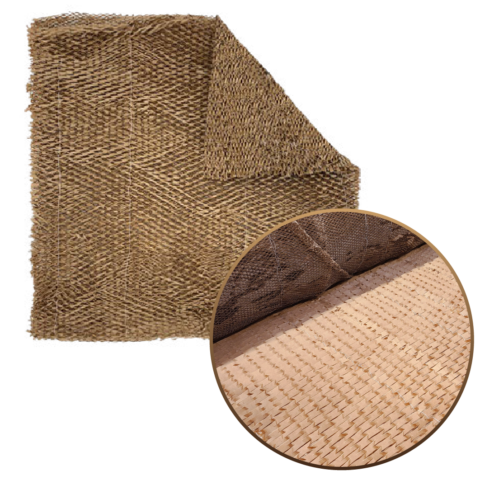

BOOSTER
Spraymesh Filter
Menu
Our products
Expanded paper exhaust filters are an effective solution for removing paint overspray.
Consisting of multiple layers of woven paper mesh, they are available with or without polyester backing.
Our BOOSTER SprayMesh filter combined to any of our other filters will improve filtration efficiency and/or holding capacity.
|
Filtration efficiency |
Holding Capacity |
layers |
|---|---|---|
|
85% to 93% |
5 to 7 kg/m2 3 to 4 lbs/20’’x20’’ pad |
4 |
| Dimensions | RESISTANCE | Code |
|---|---|---|
|
Rolls 42-43’’ x 30 ft (107-110cmx9.15m) |
Initial airflow resistance at 0.75 m/sec – 150 ft/min: 21 Pa – 0.09’’WC |
SMS4B00 |

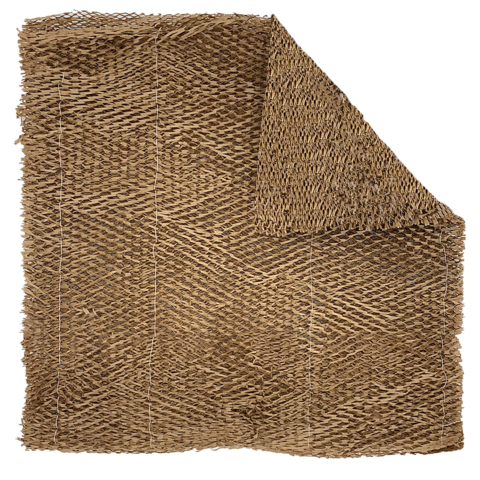

REGULAR
Spraymesh Filter
The most universal and economical filter.
|
Filtration efficiency |
Holding Capacity |
layers |
|---|---|---|
|
93 to 97% |
8 to 11 kg/m2 4 to 6 lbs/20’’x20’’ pad |
6 |
| Dimensions | RESISTANCE | Code |
|---|---|---|
|
Rolls 42-43’’ x 30 ft (107-110cmx9.15m) |
Initial airflow resistance at 0.75 m/sec – 150 ft/min: 24 Pa – 0.09’’WC |
SMS6R00 |

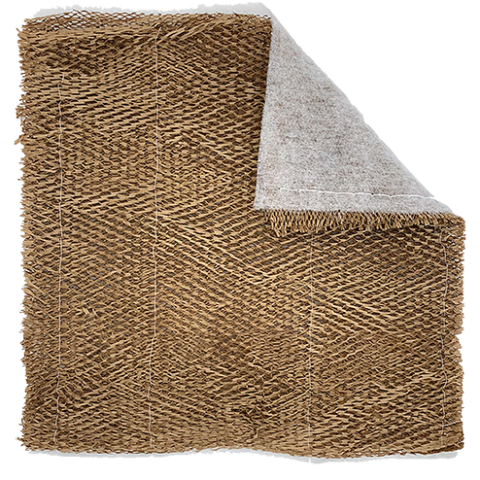

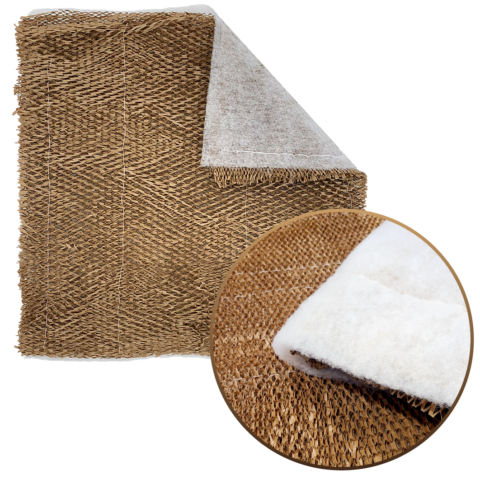

EFFICIENCY
Spraymesh Filter
The Regular SprayMesh filter with an added back polyester layer for a higher filtration efficiency.
|
Filtration efficiency |
Holding Capacity |
layers |
|---|---|---|
|
95 to 99,5% |
9 to 12 kg/m2 5 to 7 lbs/20’’x20’’ pad |
6 + 1 polyester |
| Dimensions | RESISTANCE | Code |
|---|---|---|
|
Rolls 42-43’’ x 30 ft (107-110cmx9.15m) |
Initial airflow resistance at 0.75 m/sec – 150 ft/min: 26 Pa – 0.1’’WC |
SMS6EB00 |

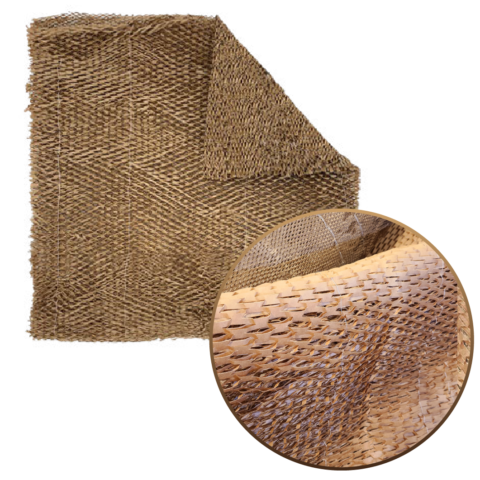

CAPACITY
Spraymesh Filter
2 added paper layers resulting in a higher holding capacity.
|
Filtration efficiency |
Holding Capacity |
layers |
|---|---|---|
|
93 to 98% |
10 to 13 kg/m2 6 to 7 lbs/20’’x20’’ pad |
8 |
| Dimensions | RESISTANCE | Code |
|---|---|---|
|
Rolls 42-43’’ x 30 ft (107-110cmx9.15m) |
Initial airflow resistance at 0.75 m/sec – 150 ft/min: 25 Pa – 0.1’’WC |
SMS8C00 |

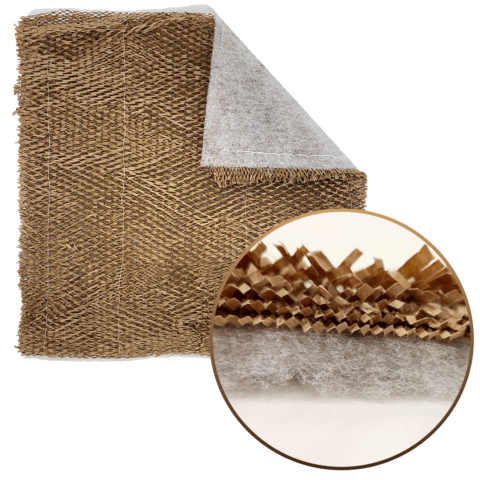

PREMIUM
Spraymesh Filter
The perfect all-in-one filter with a high filtration efficiency and a high holding capacity.
|
Filtration efficiency |
Holding Capacity |
layers |
|---|---|---|
|
98 to 99,8% |
11 to 14 kg/m2 6 to 8 lbs/20’’x20’’ pad |
8+1 layer polyester |
| Dimensions | RESISTANCE | Code |
|---|---|---|
|
Rolls 42-43’’ x 30 ft (107-110cmx9.15m) |
Initial airflow resistance at 0.75 m/sec – 150 ft/min: 26 Pa – 0.1’’WC |
SMS8P10 |
PERFORMANCE
Spraymesh Filter
A combination of our Spraymesh BOOSTER and REGULAR.
Recommended filter for a high paint volume spray booth operation.
|
Filtration efficiency |
Holding Capacity |
layers |
|---|---|---|
|
95 to 98% |
13 to 15 kg/m2 7 to 9 lbs/20’’x20’’ pad |
10 ( 4 Booster + 6 Regular ) |
| Dimensions | RESISTANCE | Code |
|---|---|---|
|
Rolls 42-43’’ x 30 ft (107-110cmx9.15m) |
Initial airflow resistance at 0.75 m/sec – 150 ft/min: 25 Pa – 0.1’’WC |
SMS10P00 |
SKILLFUL
Spraymesh Filter
A combination of our Spraymesh BOOSTER and EFFICIENT.
To keep fan and exhaust duct clean in a high paint volume spray booth operation.
|
Filtration efficiency |
Holding Capacity |
layers |
|---|---|---|
|
98 to 99,9% |
13 to 16 kg/m2 6 to 8 lbs/20’’x20’’ pad |
11 ( 4 Booster + 6 Efficient +1 polyester) |
| Dimensions | RESISTANCE | Code |
|---|---|---|
|
Rolls 42-43’’ x 30 ft (107-110cmx9.15m) |
Initial airflow resistance at 0.75 m/sec – 150 ft/min: 27 Pa – 0.11’’WC |
SMS10S10 |

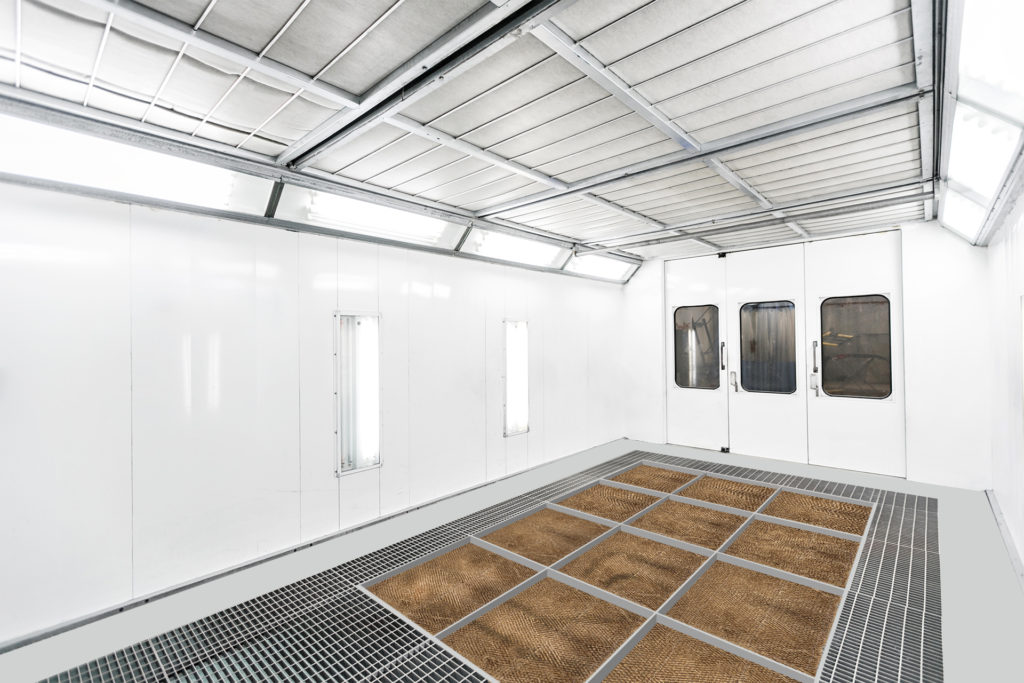

Spraying Room
